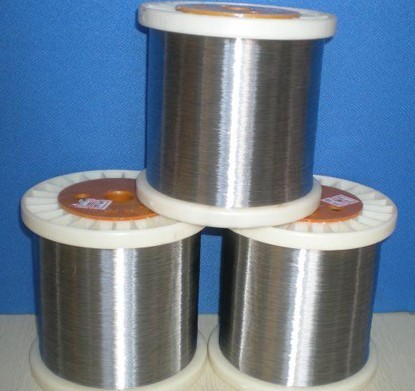

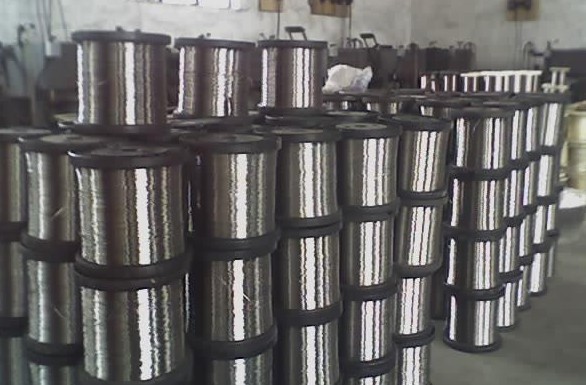

Stainless Steel Wire
1.Available Sizes in Stainless Steel Wires
Ranging from 0.10mm to 25mm in AISI 300 Austenitic, 400-ferritic series & 200 Series.
2.Available Finishes in Stainless Steel Wire
Soft Quarter hard Half hard ¾ hard Bright Matte Coated Full hard, depending upon the final application, Wires can be supplied in various surface fine Wires.
3.Technical Information
Material: 304, 304L, 316, 316L
Size: diameter 5mm to 0.025mm
Stainless steel wire uses in redrawing, mesh weaving, soft pipe, isolation layer in kitchen, steel rope, filter material, making of spring, etc.
4.Specification

Stainless spring wire
|
Material
|
Diameter
(mm)
|
Tensile Strength
(MPa)
|
|
AISI304
|
0.20-0.45
|
2050-2300
|
|
0.45-0.65
|
1950-2200
|
|
0.65-1.20
|
1850-2100
|
|
1.20-1.60
|
1750-2000
|
|
1.60-2.0
|
1650-1900
|
Stainless annealed wire
|
Material
|
Diameter
(mm)
|
Tensile Strength
(MPa)
|
Elongation(%)
|
|
AISI304
|
0.05-0.50
|
650-780
|
 35
|
|
AISI316
|
0.05-0.50
|
620-750
|
40
|
|
|
