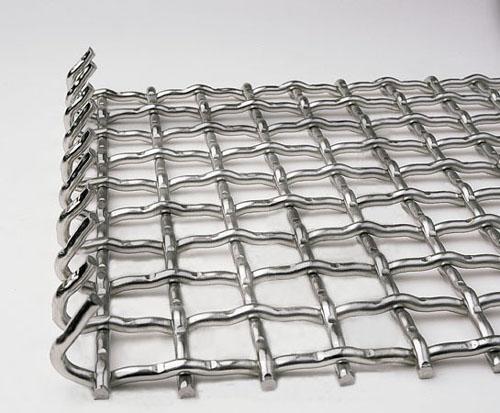

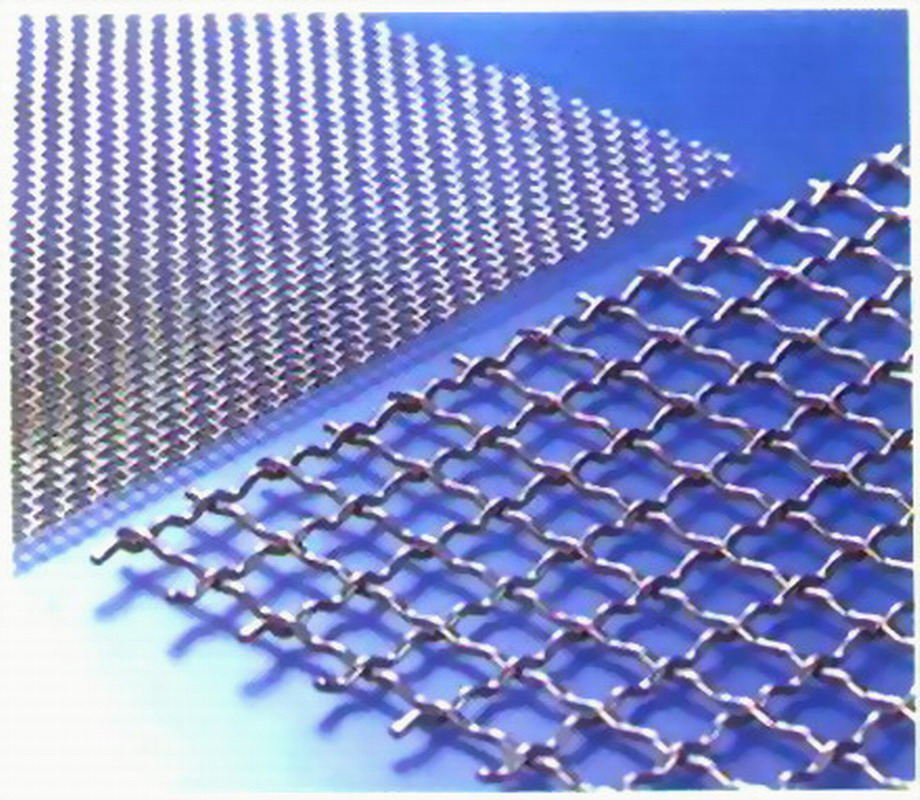

Crimped Wire Mesh

Materials of Crimped Mesh:black steel wire; white steel wire, lead wire, stainless wire etc.
Weaving of Crimped Mesh: weaving after crimp, the structure is strong.
Uses of Crimped Mesh: most used in mine coal factory, construction etc, professions.

Specification List of Crimped Mesh:

Wire Diameter (mm)	Aperture (mm)	Mesh	Length (M)	Weight (Kg)
4.00	40	0.58	30	142
4.00	30	0.75	30	182
4.00	25	0.87	30	213
3.2	25	0.87	30	141
3.2	20	1.1	30	169
2.6	20	1.12	30	116
2.6	18	1.23	30	127
2.6	15	1.44	30	173
2.0	15	1.49	30	92
2.0	12	1.8	30	110
2.0	10	2.12	30	127
2.0	8	2.54	30	155
1.8	7	3	30	149
1.8	6	3.25	30	161
1.6	7	3	30	117
1.6	6	3.35	30	131
1.6	5	3.85	30	150
1.6	4	4.5	30	176
1.6	3	5.5	30	215
1.4	6	3.5	30	105
1.4	5	4	30	120
1.4	4	4.7	30	140
1.2	8	2.7	30	59
1.2	7	3.1	30	68
1.2	6	3.5	30	77

Wire Diameter (mm)	Aperture (mm)	Mesh	Length (M)	Weight (Kg)
1.2	5	4	30	88
1.2	4	4.9	30	99
1.2	3	6	30	132
1.0	6	3.6	30	55
1.0	5	4.25	30	65
1.0	4	5	30	76
1.0	3.2	6	30	92
1.0	3	6.35	30	97
1.0	2.18	8	30	122
0.8	2.83	7	30	68
0.8	2.38	8	30	78
0.8	2.2	8.5	30	83
0.8	2	9	30	88
0.8	1.75	10	30	98
0.8	1.5	11	30	108
0.8	1.3	12	30	118
0.7	1.4	12	30	90
0.7	1.84	10	30	75
0.6	1.21	14	30	77
0.6	1.52	12	30	66
0.6	1.94	10	30	55
0.5	1.3	14	30	54
0.5	1.09	16	30	61
0.5	0.9	18	30	69
0.5	0.77	20	30	76
