Expanded metal mesh

We manufacture a full range of standard and flattened expanded metal mesh, structural grating, micro mesh and decorative patterns. Raw material can be produced in carbon, galvanized, stainless steel or high strength alloy steel.Certain alloys of copper, brass, bronze and plastics can be expanded as well.

We have filter expanded metal mesh, Industrial expanded metal mesh,decorating metal mesh, mini-opening expanded metal mesh, security fencing expanded metal sheets ...

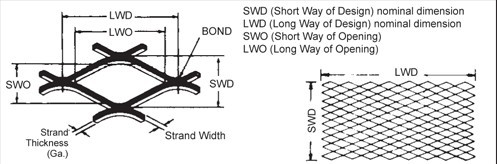

Metal Thickness	Nominal size of holes			Size of standard product		Calculated Weight kg/m2
Metal Thickness	SWM	LWM	Strand	Width	Length	Calculated Weight kg/m2
0.5	3	6		1000 2000	2000	1.76
	3.2	8
	5	10
	6	12.5		1800	3000	1.08
	7	14		1800	3000
	8	16		2000	3340
	9	20		2000	3340
	12	30	1.35	1800 2000	3600 4000	0.88
	10	25	1.12
0.8	10	25	1.12
	12	30	1.35			1.41
	15	40	1.68
1.0	10	25	1.12
	12	30	1.35			1.76
	15	40	1.68
1.2	10	25	1.13
	12	30	1.35			2.12
	15	40	1.68
	18	50	2.03
1.5	15	40	1.69			2.64
	18	50	2.03
	22	60	2.47
	29	80	3.25			3.53
2.0	18	50	2.03	1800 2000 2500	3600 4000 5000
	22	60	2.47
	29	80	3.26			4.42
	36	100	4.05			4.42
	44	120	4.95			5.29
3.0	36	100	4.05
	44	120	4.95
	55	150	4.99	2000	5000	4.27
	55	150	4.99	2500	6400	4.27
	65	180	4.60	2000	6400	3.33
	65	180	4.60	2500	8000	3.33
4	22	60	4.5	1500 \| 2000	2000-3000	12.84
	30	80	5		2000-4000	10.46
	38	100	6		2000-4500	9.91
5	24	60	6		2000-3000	19.62
	35	80	6		2000-4000	14.71
	38	100	7		2000-4500	14.67
	56	150	6		2000-6000	8.41
	76	200	6		2000-6000	6.19
6	32	80	7		2000-4000	20.60
	38	100	7		2000-4500	17.35
	56	150	7		2000-6000	11.77
