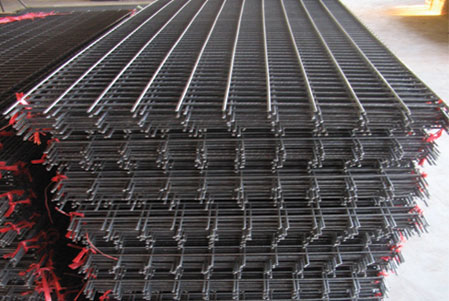

Welded Mesh

Materials of Welded Mesh: high quality low carbon steel wire.stainless steel wire.
Weaving of Welded Mesh : including galvanizing after weaving,galvanizing before weaving;
characteristics of Welded Mesh: have the strong characteristic of antisepsis and controdicting oxygenation.

Used of Welded Mesh: used
widly in industry,agriculture,building,transportation,mine field,lawn,cultivation,etc,profession sguard,decorate,machine protection etc.









Specification List of Welded Mesh:
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
1/4" x 1/4"
6.4mm x 6.4mm
22,23,24
3/8" x 3/8"
10.6mm x 10.6mm
19,20,21,22
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21,22,23
5/8" x 5/8"
16mm x 16mm
18,19,20,21,
3/4" x 3/4"
19.1mm x 19.1mm
16,17,18,19,20,21
1" x 1/2"
25.4mm x 12.7mm
16,17,18,19,20,21
1-1/2" x 1-1/2"
38mm x 38mm
14,15,16,17,18,19
1" x 2"
25.4mm x 50.8mm
14,15,16
2" x 2"
50.8mm x 50.8mm
12,13,14,15,16
 Technical Note:
  1.Standard roll length: 30m;width: 0.5m to 1.8m
  2.Special sizes available at request
  3.Packing: in waterproof paper in rolls. Custom packing available at request.

Galvanized Welded Fencing Mesh:
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
2" x 3"
50mm x 75mm
2.0mm,2.5mm,1.65mm
3" x 3"
75mm x 756mm
2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4"
50mm x 100mm
2.11mm,2.5mm
4" x 4"
100mm x 100mm
2.0mm,2.5mm
 Technical Note:
  1.Standard roll length: 30m;width: 0.5m to 1.8m
  2.Special sizes available at request
  3.Packing: in waterproof paper in rolls. Custom packing available at request.

PVC Coated Welded Mesh:
Opening
Wire Diameter<BWG>
In inch
In metric unit(mm)
1/2" x 1/2"
12.7mm x 12.7mm
16,17,18,19,20,21
3/4" x 3/4"
19mm x 19mm
16,17,18,19,20,21
1" x 1"
25.4mm x 25.4mm
15,16,17,18,19,20
 Technical Note:
  1.Standard roll length: 30m;width: 0.5m to 1.2m
  2.Special sizes available at request
  3.Packing: in waterproof paper in rolls. Custom packing available at request.

Welded Mesh Panel Specifications
Wire Diameter mm
mesh hole
weight ( m )
width( m )
diameter space mm
wei space mm
10
100--500
30--300
1--8
0.5--3
9
100--500
30--300
1--8
0.5--3
8
100--500
30--300
1--8
0.5—3
7
50--200
20--300
1--8
0.5—3
6
50--200
20--200
1--8
0.5—3
5
50--200
10-200
1--8
0.5—3
4
30--200
10--200
1--8
0.5—3
2-4
25--100
10--100
1--6
0.5--3
It can be made by customers' requirements.
