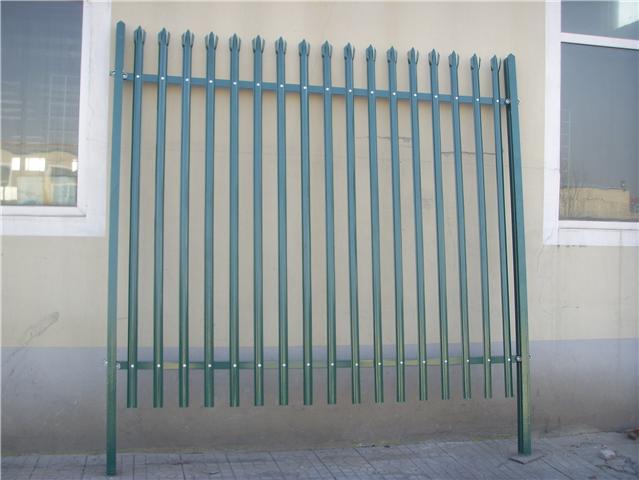

Palisade Fencing

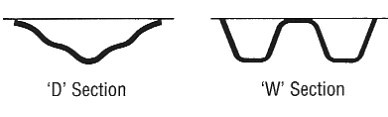

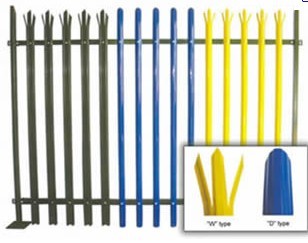

The forbidding appearance and inherent strength of the pales provide an effective deterrent to would be intruders. It is available in a choice of head styles, both in the traditional 'D' pale profile, and 'W' section pale for added security.
Palisade fencing is offered in a range of heights up to 3.6 metres, and is self-adjusting to slopes of up
to 1 in 3. It can be supplied assembled in panels, or bundled for site assembly along with either bolts or rivets.
Palisade fencing is available in a range of finishes, galvanised in, or galvanised and colour coated in various colours to blend with the environment.

Palisade Fencing Construction

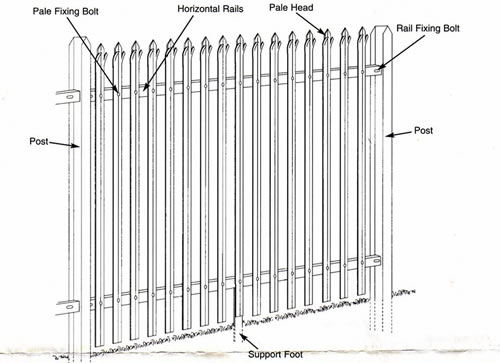

A standard panel is constructed from hot and cold rolled steel sections supplied for assembly on site. Panels consist of 17 vertical pales manufactured in "D" or "W" profile with a choice of tops. The pales are fixed to rolled steel angle horizontals which are supported by 102 x 44 joist posts.

A fish plate passes through a slot in the post and secures  the horizontal rail captive in its position. The pales are connected to the horizontals to form the  panel and are held securely together by utilising vandal resistant security fasteners.Fencing is supplied in 2.75m wide standard panels for easy assembly on site.






Palisade Fencing Available：

STANDARD HEIGHT	PALE SECTION	HEAD PROFILE
1.2M	3.0MM"D"	ROUNDED & NOTCHED
1.5M	3.0MM"D"	ROUNDED & NOTCHED
1.8M	3.0MM"D"	ROUNDED & NOTCHED
1.8M	3.0MM"D"	TRIPLE POINTED
1.8M	2.0MM"W"	TRIPLE POINTED
2.0M	2.0MM"D"	ROUNDED & NOTCHED
2.0M	3.0MM"D"	TRIPLE POINTED
2.0M	2.0MM"W"	TRIPLE POINTED
2.1M	3.0MM"D"	TRIPLE POINTED
2.1M	2.0MM"W"	TRIPLE POINTED
2.4M	2.0MM"D"	TRIPLE POINTED
2.4M	3.0MM"D"	ROUNDED & NOTCHED
2.4M	2.0MM"W"	TRIPLE POINTED
2.4M	2.5MM"W"	TRIPLE POINTED
3.0M	3.0MM"D"	TRIPLE POINTED
